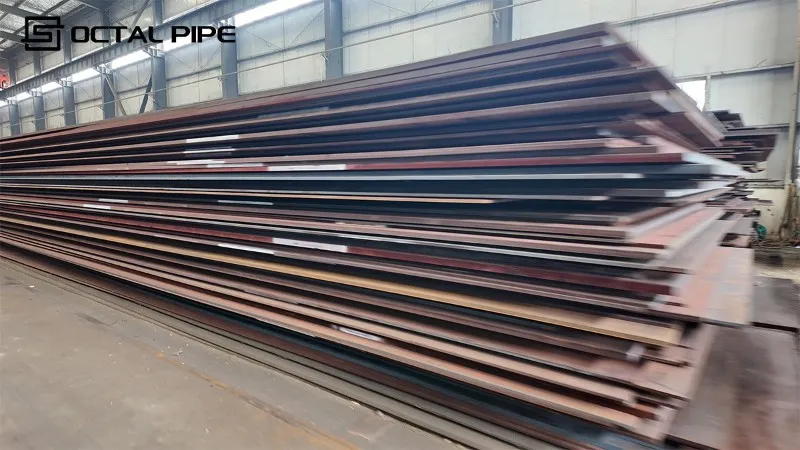

4100mm Heavy and Wide Plate

Mapulojekiti amakono opangira magetsi ndi a m'mphepete mwa nyanja akufunika kwambiri-zimbale zazikulu,{1}}zokwera kwambiri{1}}zosanja kuti achepetse nsonga zowotcherera, kufulumizitsa kupanga ma module, komanso kutsimikizira kuti makinawo agwira ntchito bwino. Chopereka cha Octal Pipe cha 4100mm cholemera komanso chachitali chimapangidwa ndendende ndi cholinga chimenecho: kupereka mbale mpaka4100 mm m'lifupindimpaka 200mm mu makulidwekuchokera pamzere wodzipatulira, wotsata pang'onopang'ono-olumikizidwa ndi makina opangaMULPIC imathandizira kuziziritsandi9-roll otentha molingana.
Tsambali limayambitsa malonda poyamba{{0}zimene tingathe kufikitsa{1}}kenako limafotokoza njira yopangira zinthu, kuti ogula ndi mainjiniya azitha kuyang'ana zonse zomwe zikuchitika.

Mapuleti a Octal Pipe a 4100mm ali m'malo ogwiritsidwa ntchito kwambiri-ofunika kwambiri: kuika magetsi, zomanga za m'mphepete mwa nyanja, matanki akuluakulu ndi zipangizo zogwiritsira ntchito mphamvu. Ma mbale atha kuperekedwa kuzinthu zazikulu zapadziko lonse lapansi (ASTM, EN, GB) ndikupangira zowonjezera zaukadaulo.

Dimensional Kutha

Mtundu uwu umalola opanga kuti achepetse ma welds aatali, kuwongolera kukhulupirika kwa gulu, ndikudula magawo olemetsa kuchokera pa mbale imodzi.

Magawo a Ntchito

Ubwino wa Zamalonda

• Zowonjezera-mtundu waukulu (mpaka 4100mm):ma weld seams ochepa komanso zolumikizira zochepa za NDT.
• Wide makulidwe zenera (6-200mm):mzere umodzi umakwirira mbale yapakati ndi mbale yolemera, yabwino pamaphukusi a EPC.
• Kutsika kwakukulu:Zofunikira pakudula zokha, kuphatikiza gulu ndi kuwotcherera kwa robotic.
• Njira yokonzekera-mphamvu / yotsika-magiredi otentha:chifukwa kugudubuza ndi kuziziritsa kumayendetsedwa.
• Tumizani-zolemba zokonzeka:MTC, ma dimensional report, 3rd{1}}kuwunika kwa chipani pakupempha.

Pofuna kuthandizira zomwe zili pamwambazi, Octal Pipe imagwiritsa ntchito mbale yomangidwa mozungulira akwathunthu stepwise kutengerapo lingaliro, kotero kutentha kwa slab, mawonekedwe a pamwamba ndi ndondomeko yogubuduza imakhala yokhazikika kuchokera pakutenthedwanso mpaka kuzizira.

Njira Yopangira

Kutentha koyambirira kwa slab → Kuyenda-ng'anjo yowothanso ng'anjo → Kutentha kwambiri-kutsika kwamadzi opanikizika → 4-high roughing mill → MULPIC accelerated cooling unit → 9-roll hot leveling machine → Malo ozizira mpweya

Maudindo okonza:

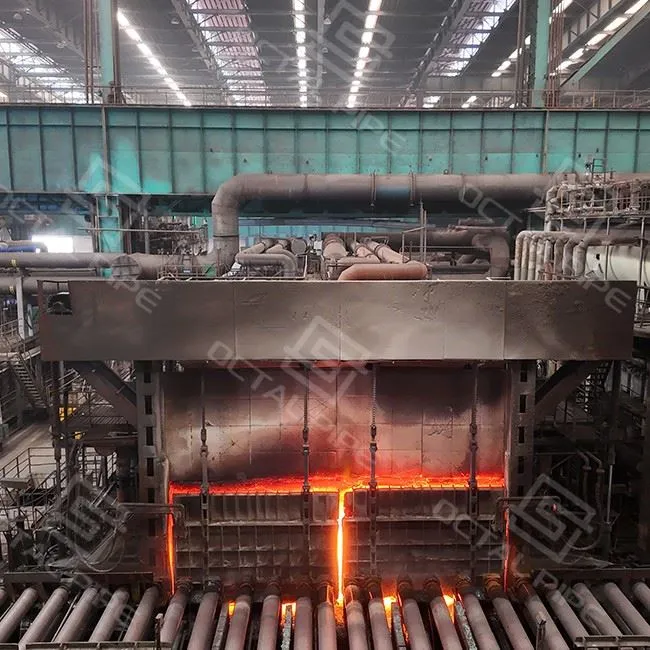

• Kuyenda-kuwotchera moto:Kutentha kofananako kwa slab, palibe chizindikiro chapansi, chofunikira pamagawo okhuthala.
• {{0}kuchepetsa kuthamanga kwambiri:imachotsa sikelo ya oxide isanapindike, imapangitsa kuti moyo ukhale wabwino komanso wozungulira.
• 4-mkulu mphero:kuuma kwakukulu kwa mbale za 4100mm, makulidwe abwinoko ndi kulolerana kwa mawonekedwe m'lifupi mwake.
• Kuzizira kwa MULPIC:kuziziritsa kokhazikika, kuziziritsa mwachangu mukangogubuduzika kuti mukhale ndi mphamvu zolimba kumtunda kapena -kutentha kocheperako.
• 9-roll otentha levelling:imachotsa ma wave/camber pamene mbale idakali yotentha, kukupatsa kutsetsereka ngakhale pamambale-akuluakulu.

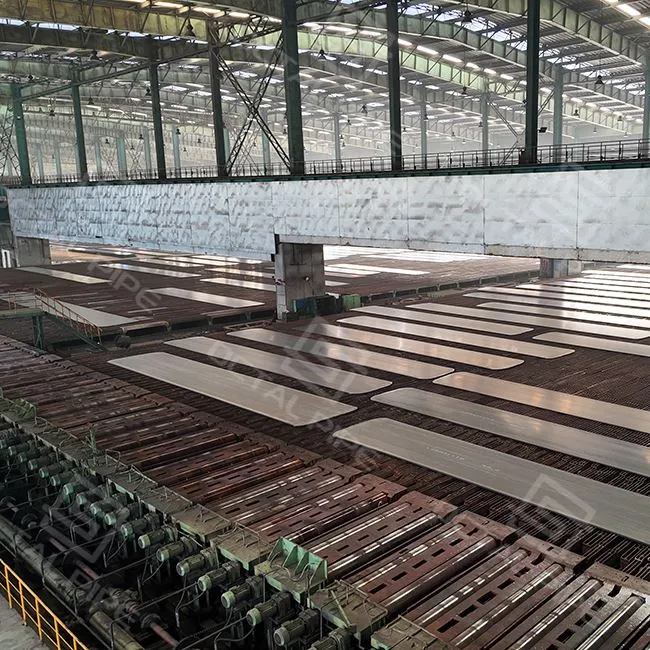

• Malo ozizira mpweya:kukhazikika kwa microstructure pambuyo pozizira kolamulidwa.

Njira-Kupanga Mapindu

Pamene inu gwero4100mm mbale yachitsulo yolemera komanso yayikulu, chiopsezo chenicheni sichikupezeka-ndi kayazitsulo mbale wopangaimatha kuwongolera mawonekedwe m'lifupi mwake ndikutulutsa mbale zomwe sizingafanane-ndi kukonzanso zovuta pakukonza. Monga wanuzitsulo mbale katundu, Octal Pipe imakuthandizani kutseka tsatanetsatane wa PO/ITP wofunika pa mbale zazikulu: chizindikiritso cha mbale chomwe chimamangiriridwa ku kutentha / malo, malo oyendera omwe mwagwirizana, ndi zinthu zovomerezeka zomveka bwino za miyeso ndi kusalala (pamene zatchulidwa).

Mapulojekiti amitundu yambiri amalephera panthawi yazinthu, osati kugudubuza. A wokhozazitsulo mbale fakitaleAyenera kutumiza mbale zazikulu zonyamula katundu ndi malamulo oyendetsera zinthu zomwe zimachepetsa kuwonongeka kwa m'mphepete ndi kusokonekera kwamayendedwe akumtunda ndi kukweza madoko. Zikafunika, timagwirizanitsa zolembera, mndandanda wazolongedza, komanso kutsatiridwa kotero kuti kulandira kungatsimikizire kuti "mbale iyi ndi kutentha/gawo" popanda kuchedwetsa, ndipo kuchuluka kwa UT/NDT kumachitidwa motsatira kuvomereza komwe kwafotokozedwa mu PO/ITP yanu.

Pa Octal Pipe, lonsembale yachitsulomalamulo amamasulidwa paumboni wovomerezeka, osati pa "ziyenera kukhala zabwino." Pama projekiti olemera a 4100mm, timagwirizanitsa mphero, kukula kwake, ndi kulongedza katundu kuti gulu lanu lolandira litsimikizire.traceability, geometry, ndi kuchuluka kwa NDTpopanda zingwe zoyeserera. Zomwe zili pansipa zimaperekedwapamene zafotokozedwa mu PO/ITP.

• Zikalata Zoyesa Zoyeserera (EN 10204 3.1 / 3.2): Timapereka mbale yachitsulo MTC/CMTR yokhala ndi kutentha/loti traceability, chemistry ndi makina amakina omangidwa ku mbale ID kuti polojekiti QA kusefera.
• Kuyang'ana m'lifupi, kukhuthala, kutalika, ndi kusalala kwa mbale kuti ziwoneke ngati zakonzeka kupanga, makamaka pazitsulo zolemera ndi zazikulu zomwe zimayenderana ndi kuchedwa{1}.
• UT / NDT ya mbale yachitsulo (pamene ikufunika): Pa mbale ya chotengera choponderezedwa kapena mbale zakunyanja, timakonza UT malinga ndi kuvomera kwanu, ndipo lipotilo likunena njira, kufalikira, mlingo, ndi zotsatira (kupambana/kukonza/kukonzanso-kuyesa).
• Malo ndi chitetezo: Mbale zachitsulo zimatha kutumizidwa ngati-zogudubuzika, kapena zokhala ndi blasting + shopu yofananira ndi penti yanu kuti mbale zifike zokonzeka kumangidwa pabwalo ndi kukonzedwa.
• Kutumiza kunja kwa mbale zachitsulo: Timayika zitsulo, chitetezo m'mphepete, ndi mbale-ndi{1}}palate tagging (oda + chidziwitso cha kutentha) kuti tichepetse kuwonongeka ndi kusakanikirana{3}}panthawi ya mayendedwe opita kumtunda ndi kukweza madoko.
• Kulandila mtolo wa zikalata: Mndandanda wazolongedza + mndandanda wazolemba umalumikizidwa ndi ma ID a mbale kuti gulu lanu lizitha kuyanjanitsa "mbale pagalimoto" motsutsana ndi "mbale pa MTC" mwachangu.

Zogulitsa-zoyamba za ogula
Timalongosola zomwe titha kupereka (4100mm m'lifupi, makulidwe a 6-200mm, kugwiritsa ntchito kunyanja / kupanikizika) tisanalankhule za zida. Izi zimagwirizana ndi momwe ogula polojekiti amasaka komanso momwe Google imayenderana ndi cholinga.

Njira yeniyeni ya chigayo, sinapangidwe-njira
Njira "kutenthetsanso → kutsika → 4-m'mwamba → MULPIC → 9-roll leveling → air cooling" ndi ndondomeko yamakono yodziwika bwino ya mphero. Izi zimapereka mphamvu zokhutira ndikuzipangitsa kukhala pafupi ndi zolemba za opanga.

Zoyenera ntchito zapadziko lonse lapansi
Octal Pipe ikhoza kugwirizanitsa mbale ndi ASTM / EN / GB ndi kulumikiza kuyendera kwa 3rd-ngati mgwirizano wa EPC ukufunika umboni wakunja.

Zowonjezera-zambiri
Osati aliyense wogulitsa anganene 4100mm ngati m'lifupi. Kuyika izi patsamba kumakuthandizani kuti musankhe "4100mm mbale", "wide plate mill", "extra wide wide steel plate" mafunso amtundu wamtundu wa "steel plate".

Mukatumiza kufunsa ku Octal Pipe, chonde nenani:

Mbalem'lifupi × makulidwe × kutalika

Standard / ntchito(m'mphepete mwa nyanja, chotengera chopondereza, chokhazikika)

Impact test kutenthandi mphamvu (ngati -ntchito yotentha yocheperako)

Mtengo wapatali wa magawo NDTkomanso ngati gulu lachitatu-likufunika

Pamwamba ndi kulongedzazofunika

Mukamaliza zambiri zaukadaulo, m'pamenenso timatha kuzifananitsa ndikusintha ndi kuzizira kwa mzere wa 4100mm.

Lumikizanani tsopano

FAQ





Kodi ndingatchule chiyani pa PO pa mbale yachitsulo yotakata kuti ndipewe kuchedwa kwa kupanga?

Pa PO, lokom'lifupi × makulidwe × kutalika, muyezo wogwiritsira ntchito (chomangira / chakunyanja / chopondera),kulolerana kwa flatness/mawonekedwe, m'mphepete (mphero-kudula kapena lawi-kudula), mawonekedwe (monga{2}}kugudubuzika kapena kuphulika/kuwomberedwa atatchulidwa), ndi chilichonseChofunikira cha UT/NDT + mulingo wovomerezekakotero kulandira kumatha kuvomereza mbale popanda kukonzanso malupu.

Kodi pali kusiyana kotani pakati pa EN 10204 3.1 ndi 3.2 pazitsulo zachitsulo?

EN 10204 3.1ndi satifiketi yoyendera mphero yokhala ndi zotsatira zamakina / zamakina zomangika ku kutentha / zambiri, pomweEN 10204 3.2imawonjezera kutsimikizira kodziyimira pawokha/kusayina-kuchotsedwa (kwachitatu-kwagulu kapena wogula) pakafunidwa ndi polojekiti.

Ndi liti pamene ndiyenera kuyesa UT pa mbale yachitsulo, ndipo lipoti la UT liwonetsere chiyani?

Amafuna UT pamene mbaleyo ili yopangira welded wovuta kwambiri (monga zigawo zokhuthala kapena pulojekiti-zowongolera khalidwe lodziwika); wamba mfundo mongaMtengo wa EN 10160kapenaChithunzi cha ASTM A578, ndipo lipoti la UT liyenera kunenanjira + kuphimba + mulingo wovomerezeka + zotsatira(pass/repair/repair-test) monga tafotokozera mu PO/ITP.

Zitsimikizo



Chizindikiro cha CE

ISO 9001 satifiketi

API Q1 satifiketi

Satifiketi ya ABS

Satifiketi ya AP-5L

API-5CT satifiketi
