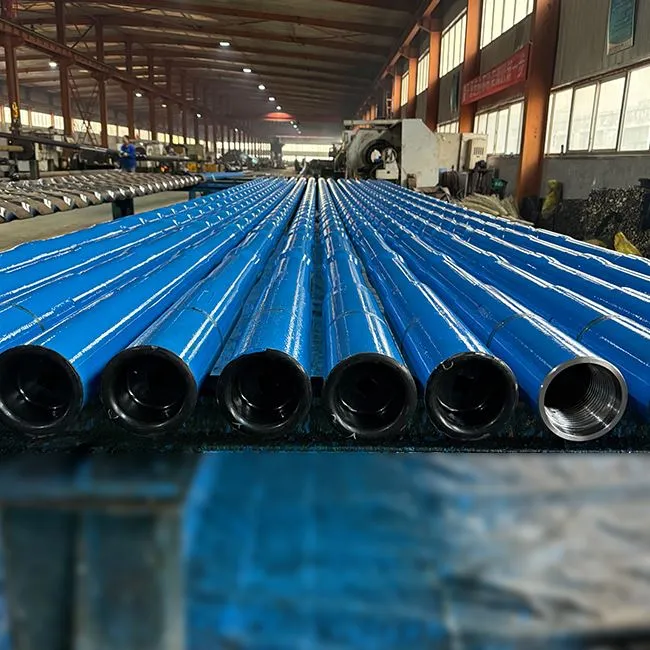

Kubowola Chitoliro

Boola chitolirondi chingwe chobowola chitsulo chokhala ndi malekezero osokonekera ndi zolumikizira zida zomangika, zopangidwa ndi kuyang'aniridwa ku API Spec 5DP kotero kuti zogula zitha kutseka kuvomereza, kufufuza, ndi kupanga{1}}kudalirika chitoliro chisanafike pochingirira.

Monga wopanga chitoliro, Octal Pipe imayang'ana kwambiri za zomwe zingathe kutheka-zowotcherera, ulusi wosasunthika, ndi kutumiza{1}}malekodi a mlingo-chifukwa kuchedwa kwambiri kumayambira polumikiza, osati gulu la chitoliro.,Octal Pipe's kubowola chitoliro amapangidwa mogwirizana ndi API Specry pipe7 API-API5 kubowola tsinde, ndi API Spec 7-2 yolumikizira zida zolumikizira. Izi zimatsimikizira mphamvu zamakina, kulondola kwenikweni, komanso kusinthasintha ndi zida zapadziko lonse lapansi zoboola.

M'mawu ogula kwenikweni, vuto la mapaipi obowola nthawi zambiri sayamba kutsitsa-amayamba ndizosadziwika bwino za PSL/giredi, malumikizidwe osagwirizana/malumikizidwe a zida, ndi zolembera zosowekacheke chomwe chikubwera mochedwa ndikupanga kuchedwa-mbali. Octal amapereka API 5DP kubowola chitoliro ngatikuvomera-paketi yokonzeka: zolowetsa zomveka bwino za RFQ (pogwiritsa ntchito API RP 7G monga cholembera chosankhidwa), kufotokozera kukula kwake, ndi paketi ya zolemba zomwe zimachepetsa kukonzanso ndi kukangana pambuyo pake.

Mapaipi obowola ndi chingwe chogwirira ntchito chomwe chimagwirizanitsa makina ozungulira pamwamba ndi pang'ono ndi msonkhano wapansi (BHA). Pobowola bwino, imagwira ntchito zitatu nthawi imodzi. Choyamba, imatumiza torque ya rotary ndi RPM kuchokera pamwamba pagalimoto kapena tebulo la rotary kudzera pachida-malumikizidwe olumikizana kuti mutembenuzire pang'ono. Chachiwiri, imanyamula katundu wa axial (kulemera-pa-pang'ono) ndi kupindika pamene chitsime chikusintha ndipo chingwecho chimakhudza pobowo. Chachitatu, imagwira ntchito ngati njira yolumikizira madzi akubowola: matope amapoperedwa pansi pa chitoliro chobowola kupita ku timabowo tating'ono, kenako amabwerera m'mwamba kuti anyamule ma cuttings, kuwongolera kuthamanga, kuziziritsa pang'ono, ndikukhazikitsa dzenjelo.

Chifukwa malo otsetsereka siwokhazikika-, chingwe chobowola chimakhala ndi mayankho osunthika omwe amawonekera pachithunzichi: axial vibration ndi shock (bit bounce), lateral vibration ndi impact (kupindika ndi kukhudza khoma), ndi kugwedezeka kwamphamvu. Kugwedezeka kwa torsional kumatha kukhala kutsetsereka, pomwe pang'ono pang'onopang'ono kumachedwerapo kapena kutsika pomwe kusinthasintha kwapamwamba kumapitilira, kenako kumatuluka mwadzidzidzi-kumapangitsa kuti pakhale torque yayikulu komanso kutopa kwambiri pamalumikizidwe ndi malo osinthira. Bit whirl ndi kusakhazikika kwapang'onopang'ono komwe pang'ono / BHA imadutsa pozungulira dzenje lapakati; kamvuluvulu wopita kutsogolo ndi wakumbuyo amafotokoza njira zosiyanasiyana zosinthira / kulumikizana ndipo amatha kuyendetsa mwachangu kuvala kodula ndi kuwonongeka kwa kulumikizana. Ichi ndichifukwa chake kusankha ndi kuyang'anira mapaipi obowola kumayendetsedwa ndi kukhulupirika kwa kulumikizana, kusasinthasintha kwa mawonekedwe, komanso kutsata, osati OD ndi makulidwe a khoma.

Wopangidwa ndi wopanga chitoliro chobowolera ku API Spec 5DP kotero kuti zogula zitha kutseka kuvomereza, kutentha-ku{2}}kufufuza molumikizana, ndi kupanga-kudalirika chitolirocho chisanafike poyambira.

Drill Pipe Makulidwe

API 5DP Drill Pipe Specification (Makalasi, Makulidwe, Malumikizidwe)

• Kusankhidwa kwa kalasi: Fananizani E75/X95/G105/S135 ndi pulogalamu yoyembekezeka ya torque, kukangana, ndi kubowola mozama.
• Zitsime zowawasa / zowononga: Boma chizolowezi cha CO₂/H₂S kotero kuti zosankha zachitetezo ndi kukula kwake zitha kulumikizidwa (zikatchulidwa).
• Kuwongolera zoopsa pa kulumikizana: Sankhani mtundu wa zida zolumikizirana ndikupangira-zolowerani kuti muchepetse kuvulala ndi kuwonongeka kwa mapewa.
• Kumveketsa bwino: Pamafunika chizindikiritso chophatikiza-chidziwitso + cholozera kuti muwerenge mwachangu komanso kuvomera pabwalo.

Octal Pipe imatsata njira zotsatizana komanso zotsatirika kuti zitsimikizire kukhulupirika kwamakina komanso kukana kutopa:

1. Kupanga Zitsulo & Tube Rolling

• Machubu achitsulo osasunthika (35CrMo, 40Cr, 4137H, 4145H) okhala ndi chemistry yoyendetsedwa.
• Kuponyedwa kosalekeza ndi kuboola kumatsimikizira kuti mbewuyo imakhala yofanana.

2. Zokhumudwitsa

• Mapaipi amatenthedwa ndikupangitsidwa kukhala Internal Upset (IU), External Upset (EU), kapena Internal-External Upset (IEU) mawonekedwe.
• Kukhumudwitsa kumawonjezera-magawo ang'onoang'ono a zida zowotcherera, kukulitsa mphamvu yolumikizira.

3. Chithandizo cha Kutentha

• Kuzimitsa & kupsya mtima kumapereka mphamvu yokwanira yokolola/yokanika (mwachitsanzo, S135 Kuposa kapena kufanana ndi 135,000 psi).
• Kuwongoleredwa kwa ng'anjo yoyendetsedwa kumatsimikizira kuuma kwa chitoliro chonse.

4. Kuwotcherera Kukangana

• Precision friction-welding imalumikiza zida zapaipi zosokoneza.
• Weld zone amapatsidwa chithandizo chapadera chotenthetsera kuti akwaniritse kulumikizana kosasunthika kwazitsulo.

5. Machining & Threading

• API 7-2 ulusi (NC, IF, REG, FH) odulidwa ndi CNC mwatsatanetsatane.
• Kupaka kwa phosphate ndi plating yamkuwa kumagwiritsidwa ntchito kuti muchepetse kuphulika.

6. Zolimba & Chitetezo Pamwamba

• Fe{{0}based, Cr-carbide, kapena Nb alloy hardbanding imapangitsa kuti musamavalidwe.
• Kuphimba komaliza ndi zoletsa dzimbiri zotetezera zoyendera/zosungirako.

• Malumikizidwe Okhazikika:API NC, IF, FH, REG
• Maulalo a Premium:XT™, HT™, {{0}zingwe zamapewa) ziwiri (zoletsa torque & kusatopa)
• Hardbanding:Wear-zigawo zodzitchinjiriza zomwe zimagwiritsidwa ntchito pamalunjiro a zida, kuchepetsa kusinthasintha kwapansi.
• Zochizira Pamwamba:Zokutira za mkuwa, phosphating, zothira-zoletsa ndulu.

API 5DP kubowola mapaipi kulumikizana ndi zida zolumikizirasankhani ngati chingwe chanu chikuyenda bwino pachowongolera-kapena chisanduke kukonzanso ndi nthawi yodikirira. "Mavuto ambiri" amachokera ku chimodzi mwa mipata itatu yogula zinthu: thekugwirizana kolakwika, miyeso yolumikizira zida zomwe sizikugwirizana ndi zida zogwirira ntchito, kapenakusowa umboni wowongolera ulusi.

Zoyenera kuyika pa PO (kuti Octal azipereka ngati makina ofananira):

• Mtundu wolumikizira:NC / IF / REG / FH (kapena zombo zanu zenizeni)
• Pin/box plan:tsimikizirani ma pini / bokosi ndi zosowa zilizonse za crossover
• Malire ophatikiza zida:chida cholumikizira OD + tong space / zopinga za elevator
• Zosankha zamavalidwe (pokhapo ngati pakufunika):zolimba, zokutira mkati, -zoletsa ndulu

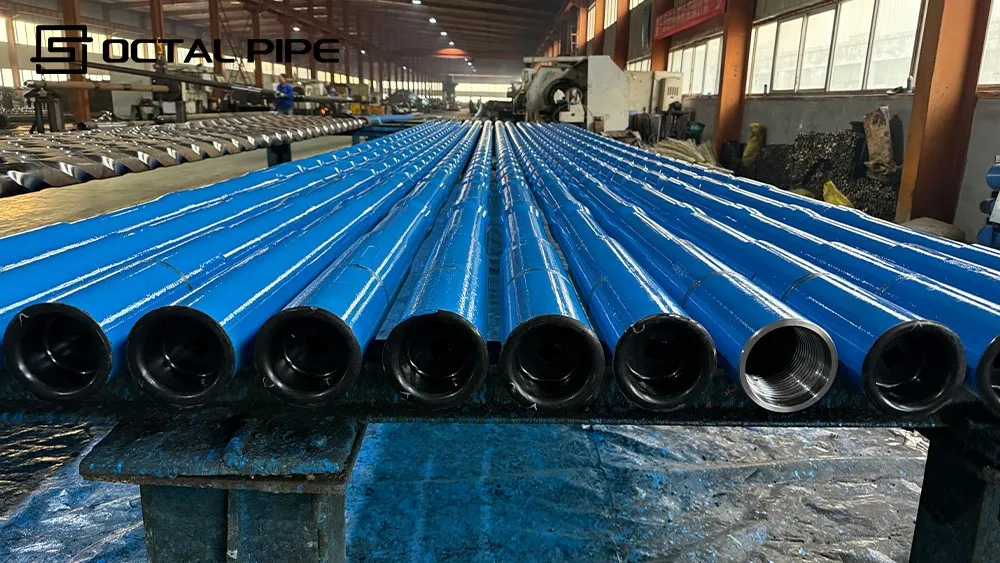

• Kuchuluka kwachitetezo:zoteteza ulusi zikuphatikizidwa (pini & bokosi)

Momwe Octal amachepetsa vuto (mwachindunji, osati wamba):

• Timatsimikizira zadongosolo kugwirizana ndi zida olowa malire pamaso kupangakotero chitoliro choperekedwa chikufanana ndi chizolowezi chanu, osati ulusi "wosasinthika".
• Kutumiza kulikonse kumaphatikizapotraceability + zolemba za dimensional,ndizizindikiro zodziwikiratu pamene zafotokozedwa-kotero kuyendera komwe kukubwera kutha kusamuka popanda kuthamangitsa imelo.
• Zoteteza ulusi ndi kuphatikiza kokhazikika zimatengedwa ngati njira imodzi yoletsa kuwopseza, chifukwa zambiri zomwe zimapanga-zovuta zimayambira pakusamalidwa, osati zitsulo.

kugula{{0}zoyamba + zowongolera za Octal:

Rig-kuwonongeka kwapansi nthawi zambiri kumabwera chifukwa cha zida zogwirizira mosagwirizana, kuyika matong molakwika, kapena kupanga kosalamulirika-. Octal Pipe imapereka chitoliro chobowola chokhala ndi njira zolumikizira (NC/IF/REG/FH ndi premium double-mapewa) ndi mankhwala ochizira pamwamba (phosphating/copper plating) kuti chingwecho chiziyenda bwino ndi zida zogwirizira.

Tap Drill Size Reference (ya Shop Threading, osati Oilfield Drill Pipe)

Mafunso otsatirawa a "kubowola paipi" amatanthawuza kukula kwa kubowola kwapampopi komwe kumagwiritsidwa ntchito podula ulusi wa NPT pokonzekera msonkhano; iwo si kubowola mapaipi OD / kugwirizana specifications. Kuti muwone mwachangu: 1/8 ″ Kubowola kwapampopi kwa NPT ndikofala11/32 ″ (0.344 ″ / 8.73 mm), 1/4″ NPT ndi7/16″ (0.438″ / 11.11 mm), ndi 3/8″ NPT ndi37/64 ″ (0.578 ″ / 14.68 mm)-nthawi zonse mutsimikizire motsutsana ndi tchati cha wopanga ma tap pa ulusi weniweni ndi kuchuluka kwa ulusi.

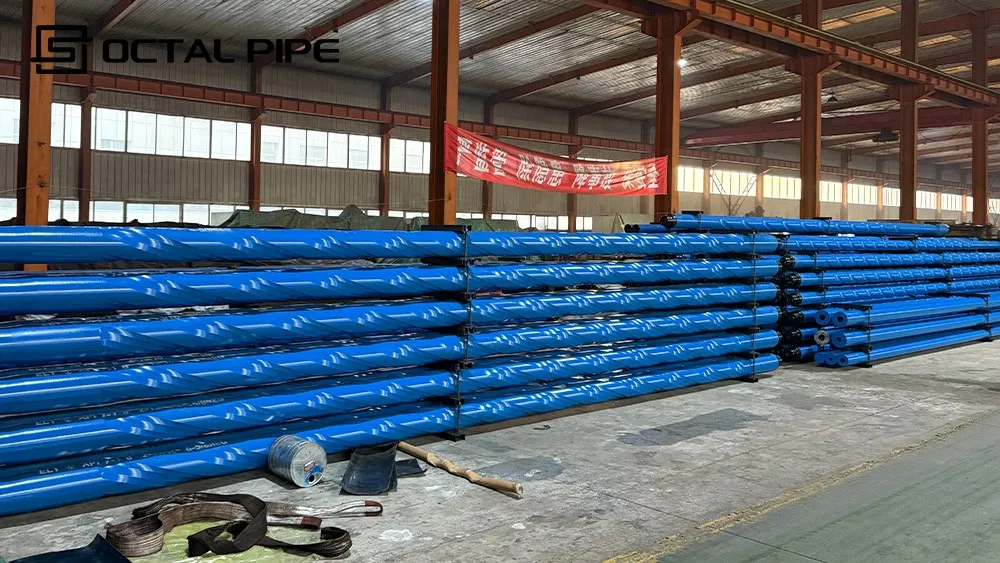

Mitundu yosiyanasiyana ya mapaipi obowola amapangidwira mikhalidwe yapadera:

• E75:Perekani Zoposa kapena zofanana ndi 75,000 psi. Zoyenera zitsime zozama/zapakati-zakuya.
• X95:Perekani Zoposa kapena zofanana ndi 95,000 psi. General-giredi yacholinga molimba mtima.
• G105:Perekani Zoposa kapena zofanana ndi 105,000 psi. Amagwiritsidwa ntchito pazitsime zakuya kapena katundu wapamwamba.
• S135:Perekani Zoposa kapena zofanana ndi 135,000 psi. Zofunikira pazitsime zakuya ndi mikhalidwe ya HPHT.

Ma Parameters Ofunika Kwambiri (pa API 7-1 / 5DP):

• Kulimba kwamakokedwe:Kutsimikiziridwa ndi kuyesa kowononga giredi iliyonse.
• Kuvuta Kwambiri:Mayeso a Charpy V-notch pa kutentha kovuta kwambiri.
• Kuwongolera Kuwuma:Zida zolumikizira 285-341 HB wamba; thupi kuuma mosamalitsa malamulo.
• Kuchita Kutopa:Chida cholumikizira / chowotcherera thupi choyezeredwa kukana kutsitsa kwa cyclic.

Kugula sikufuna "mawu olimba a QA". Muyenerachiwerengero chovomerezekandi amapepala paketizomwe zikuwonetsa zotsatira zoyezedwa. Kwa API 5DP kubowola chitoliro (PSL-1 / PSL-2 / PSL-3), Octal imayanjanitsa kuwunika kwanuPO/ITP, kenako imapereka zolemba zomwe zimagwirizana ndi macheke omwe oyendera anu amayendetsa.

EN 10204 3.1/3.2 paketi (pamene yatchulidwa):MTC/CMTR yokhala ndi nambala ya kutentha, chemistry, zotsatira zamakina, ndi mapu owoneka bwino pamndandanda wotumizidwa.

Octal Pipe amaperekaAPI 5DP kubowola chitolirokwa mapulogalamu kubowola kumene ogula amasamala zochepa za "bowola chitoliro ambiri" ndi zambiri zakugwirizana kugwirizana, chiopsezo kutopa, ndi kuvomereza mapepalaizo sizingachedwetse chowongolera.

Zitsime zopotoka komanso zolunjika (kumene kumayamba ndi kutopa ndi zida zophatikizira zida)

Agalu ndi maulendo obwerezabwereza amalanga kugwirizana. Cholakwika chofala kwambiri pakugula ndikuyitanitsa chitoliro popanda kutsekadongosolo lolumikizana + malire ophatikiza zida, kenako kuzindikira zosagwirizana panthawi ya make{0}up.

• Njira ya Octal Pipe:tsimikizirani malumikizidwe enieni ndi zovuta zolumikizana ndi zida mu PO, kenako thandizirani kuvomereza ndi maumboni owunikira/kuyezera pakatchulidwe, kuti "sikutheka" lisakhale vuto lanthawi-.

Zam'mphepete mwa nyanja komanso-zambiri zogwirira ntchito (komwe ulusi umawonongeka aliyense asanazindikire)

Chitoliro chikakwezedwa, kukonzedwa, ndikusamutsidwa kangapo, "zimawoneka bwino pofika" nthawi zambiri zimasanduka kuwonongeka kwa pini/bokosi komwe kumangowonekera pachotchingira.

• Njira ya Octal Pipe:samalirani chitetezo ngati gawo la QA-oteteza ulusi + kumanga mtolo wokhazikika + chizindikiro chomveka bwino ndi kukula/kalasi/utali-kuti bwalo lanu lolandirira zisaphatikizire zofunikira komanso kuti ogwira ntchito anu asathe kuthana ndi kuwonongeka kwa sitima.

Utumiki wowawasa / madzi akubowola owononga (komwe dzimbiri lamkati limakhala mtengo wobisika)

Mu zitsime ndiH₂S/CO₂, ma chloride ambiri, kapena madzi akubowola mwamphamvu, kulephera kwa mapaipi obowola kumayamba ngati dzimbiri lamkati kapena kubowola nthawi yayitali chingwe chisanawonekere "choyipa" kunja-ndikuwoneka ngati kukanidwa msanga pouyendera kapena kutsika mosayembekezereka.

• Njira ya Octal Pipe:timayang'anira malo anu enieni (madalaivala amadzi / corrosion + kutentha), ndiyeno timapereka chitoliro chobowola cha API 5DP ndikuyang'anira-paketi yokonzekazomwe zimathandizira kuvomereza (MTC/CMTR + mechanical results, plusNDT ndi njira zokutira zamkati zikafotokozedwa mu PO/ITP), kotero kuti zinthu zowononga-zogula sizidalira mongoyerekeza.

Kwa EPC ndi makontrakitala oboola poyerekezeraChina kubowola chitoliro opangandikubowola mapaipi ogulitsa, chigamulochi nthawi zambiri chimabwera chifukwa cha kutsatira ndondomeko (kutentha-ku-kujambula pamodzi), chitetezo cha kugwirizana panthawi ya mayendedwe, komanso ngati ma rekodi a QA angathe kutumizidwa mwachindunji mu dongosolo la polojekiti (pamene atchulidwa mu PO/ITP).

1. Ubwino wowotcherera wa zida (malo enieni omangika)

2. Chitoliro chobowola sichilephera pakati pa thupi poyamba-zovuta zomwe nthawi zambiri zimakhazikikachida cholumikizira / chowotchererachifukwa imanyamula-zozungulira, torque, ndi kupindika. Octal Pipe imayang'anira izi powona cholumikizira ngati njira yofunika kwambiri, osati kuwonjezera zinthu-, ndipo zolemba zomwe zatumizidwa zimagwirizanitsa zidazo kuti zibwererenso pagawo kuti kuvomereza kusadalire "kukuwoneka bwino."

3. Chithandizo cha kutentha & kusasinthasintha kwa kalasi (chifukwa chiyani "API 5DP" ikufunikabe umboni)

4. Kugula chitoliro cha API 5DP sikungogula chizindikiro-ndikugulakubwereza makina ntchitobatch to batch. Octal Pipe imasunga magiredi mosasinthasintha kudzera pakuwongolera koyendetsedwa ndikupereka zotsatira zamakina mu paketi ya zolemba kuti kugula kuvomerezedwe ndi umboni, osati malonjezo a ogulitsa.

5. Kupanga ulusi ndi njira zoyezera (kupanga-kudalirika kumapangidwa)

6. Nthawi zambiri kuchedwa kwa zida zimachokera ku ulusi: kuphulika, kusakwanira bwino, kapena kuwonongeka komwe kukanatha kupewedwa. Octal Pipe imayang'anira kuwongolera kwa ulusi monga momwe ulusi umapangidwira{1}}zotetezedwa kuti zigwiritsidwe ndipo, PO/ITP yanu ikakufunsani, kutumiza kumaphatikizapozizindikiro za matendakotero gulu lolandira likhoza kusaina popanda kukangana.

7. Kulongedza ngati gawo la ntchito yabwino (chifukwa kutumiza kumatha kuwononga chitoliro chabwino)

8. Ngakhale chitoliro chopangidwa mwangwiro chikhoza "kuwonongeka" muzochita. Ichi ndichifukwa chake Octal Pipe imagwira ntchito zoteteza, kukhazikika kwa mtolo, ndikuyika chizindikiro potengera kukula/giredi/utali monga gawo la zowongolera-kuti zomwe mumalandira ndi zokonzeka kugwira ntchito, osati "zofunika kusanja ndi kuyang'ananso."

Mukamagula chitoliro chobowola kuti mugulitse pulogalamu yogwira ntchito, njira yachangu kwambiri yopewera kukanidwa kwa "sikutheka" ndikuitchula ngati njira yofananira, osati chubu cha generic. State OD/WT ndi Range (R1/R2/R3), giredi (E75/X95/G105/S135), ndi dzina lenileni la malumikizidwe (NC/IF/REG/FH kapena premium double-phewa), kenaka yikani zida zolumikizirana (OD/tong space) ndi zofunika zoteteza kuti mugwire ndi kuwerengera pabwalo. Ngati PO/ITP yanu ikufuna umboni, tchulani zolembedwazo-zotsatira za drift (mandrel size + pass/fail), thread gauging, ndi NDT scope pokhapokha-kuti zotumiza zifike "zovomerezeka{13}zokonzeka" m'malo moyambitsa maulendo owonjezera oyendera.

Lumikizanani tsopano

Tsambali likukhudzaoilfield API 5DP kubowola chitolirokwa zingwe zoboola. Ma chart a kukula kwa kubowola kwa ulusi wa NPT ndi mutu wa makina osiyana ndipo si gawo la kugula mapaipi obowola.

FAQ



Kodi pali kusiyana kotani pakati pa API 5DP ndi API RP 7G pogula chitoliro chobowola?

API 5DPndikugula ndi kuvomereza muyezopopanga chitoliro chobowola/kuwunika.API RP7Gamagwiritsidwa ntchito ngati azolozera kusankha(zolowera zomwe muyenera kuziganizira za mamembala obowola ndi malire ogwiritsira ntchito). Mu ma RFQs, gwiritsani ntchito 5DP kutseka kuvomereza ndikugwiritsa ntchito 7G kulingalira kuti mupewe kugula kolakwika-grade/wrong-kugula kolumikizana.

Kodi nditchule chiyani pogula API 5DP drill pipe kuti ndipewe kuchedwa-side make{2}}up?

NenaniOD/WT + Range (R1/R2/R3), kalasi, ndi zenizenichizindikiro cha mgwirizano(NC/IF/REG/FH) kuphatikizachida olowa malire(OD / tong malo). Onjezanizoteteza ulusindipo nenani momveka bwino kuchuluka kulikonse kofunikira (mwachitsanzo, kuwerengera ulusi/NDT) mu PO kotero palibe "cholingaliridwa."

Ndi zolemba ziti zomwe ziyenera kubwera ndi chitoliro chobowola cha API 5DP kuti chiwunikidwe?

Osachepera:MTC/CMTR (traceability), zolemba za dimensional/zowongoka, ndi mndandanda wazolongedza wojambulidwa ndisize/grade/length. Ngati PO/ITP yanu ikufuna, onjezanizizindikiro za matenda, kuphatikizaMalipoti a NDT/hydrotest/impactpokhapo pokhapo-kuvomereza kukhala umboni{{1}kuchokera, osati imelo-kutengera.

Kodi ndimasankhira bwanji zolumikizira ndi zida zamapologalamu opotoka kapena apamwamba-wobowola torque?

Pantchito zopatuka/zapamwamba{0}}zolephereka ndi kuchedwetsa nthawi zambiri zimayambira pamgwirizano / chida cholumikiziradera, osati thupi la chitoliro. Sankhani maulumikizidwe kuti agwirizane ndi mayendedwe anu, kenako zotsekera zolumikizira zida zotsekera (zoteteza/kupakira) kuti muchepetse kuwonongeka kwa ulusi ndikupangitsa-kukana; pemphani zolemba zina zowunikira ngati mbiri yanu yakulephera ikutsimikizira.

Zitsimikizo



Chizindikiro cha CE

ISO 9001 satifiketi

API Q1 satifiketi

Satifiketi ya ABS

Satifiketi ya AP-5L

API-5CT satifiketi



Mtundu wa OD: 2 3/8" – 6 5/8"

Magiredi: E75, X95, G105, S135

Utali: R1 / R2 / R3

Mitundu Yokhumudwa:IU, EU, EU

Kulumikizana:NC, IF, REG, FH, zosankha zamtengo wapatali

Mapulogalamu:Zitsime zakuya, HPHT, kunyanja, kubowola kolowera
